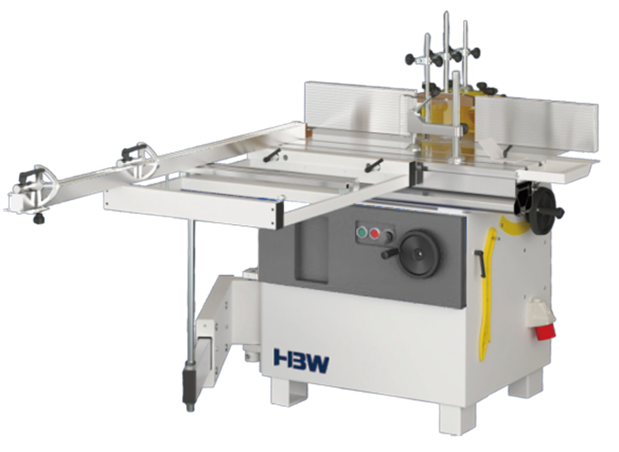

SPINDLE MOLDER SM100A

SPINDLE MOLDER SM100A

$0.00 USD
$0.00 USD
Sale Sold out
  • CLICK HERE TO DOWNLOAD PDF FILE
  • Spindle diameter: 30 (32;35;40;50) mm
  • Spindle speeds: 2500/3500/6000/8000/10000 RPM
  • Max. spindle stroke: 140 mm
  • Spindle length: 130 mm
  • Spindle tilting: -5° + 45°
  • Max. diameter of table opening: 220mm
  • Max. tool diameter under the table: 175mm
  • Max. tool diameter above the table: 200/250mm
  • Height of table: 890mm
  • Max. height of machine: 1300mm
  • Table size: 1000*350mm
  • Suction dust hood diameter: 100mm
  • Motor: 3kw S6
  • 1*230V: 4 kW S6
  • 3*400V: 275 / 270 kg
  • Net/Gross Weight: 1150x900x1085/1740x230x125 mm
