Ar Machinery

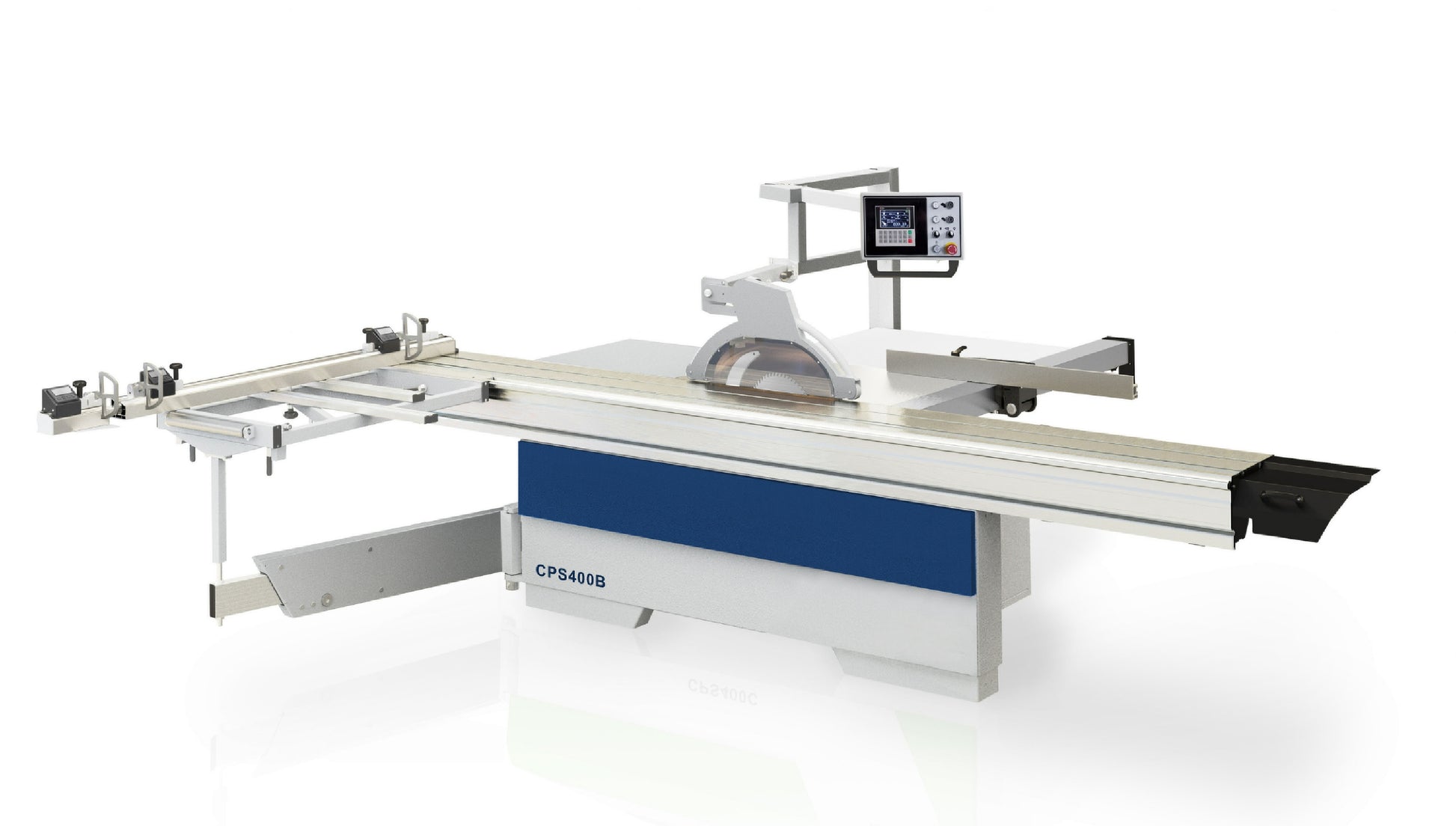

06 SLIDING SAW CPS400-B-AR

06 SLIDING SAW CPS400-B-AR

$0.00 USD
$0.00 USD
Sale Sold out
  • Main Blade Diameter: 400mm
  • Main Blade Speed: 3000/4000/5000rpm
  • Scoring Blade Diameter: 120mm
  • Scoring Blade Speed: 8000rpm
  • Blade Tilt: 0-45°
  • Max Depth of Cut @45°: 85mm
  • Max Depth of cut @90°: 125mm
  • Max Rip Capacity: 1250mm
  • Sliding Beam Size: Standard: 3800*418mm
  • Sliding Beam Cutting Capacity: Max Length: 3800mm
  • Table Size: 1020 (690+720) mm
  • Dust Extraction Outlet: 100mm
  • Main Motor Output: 3*400V: 5.5kw S1
  • Net / Gross Weight: 1040 / 1130kgs
  • Package Size: 2300*1450*2200 / 3570*550*280mm
