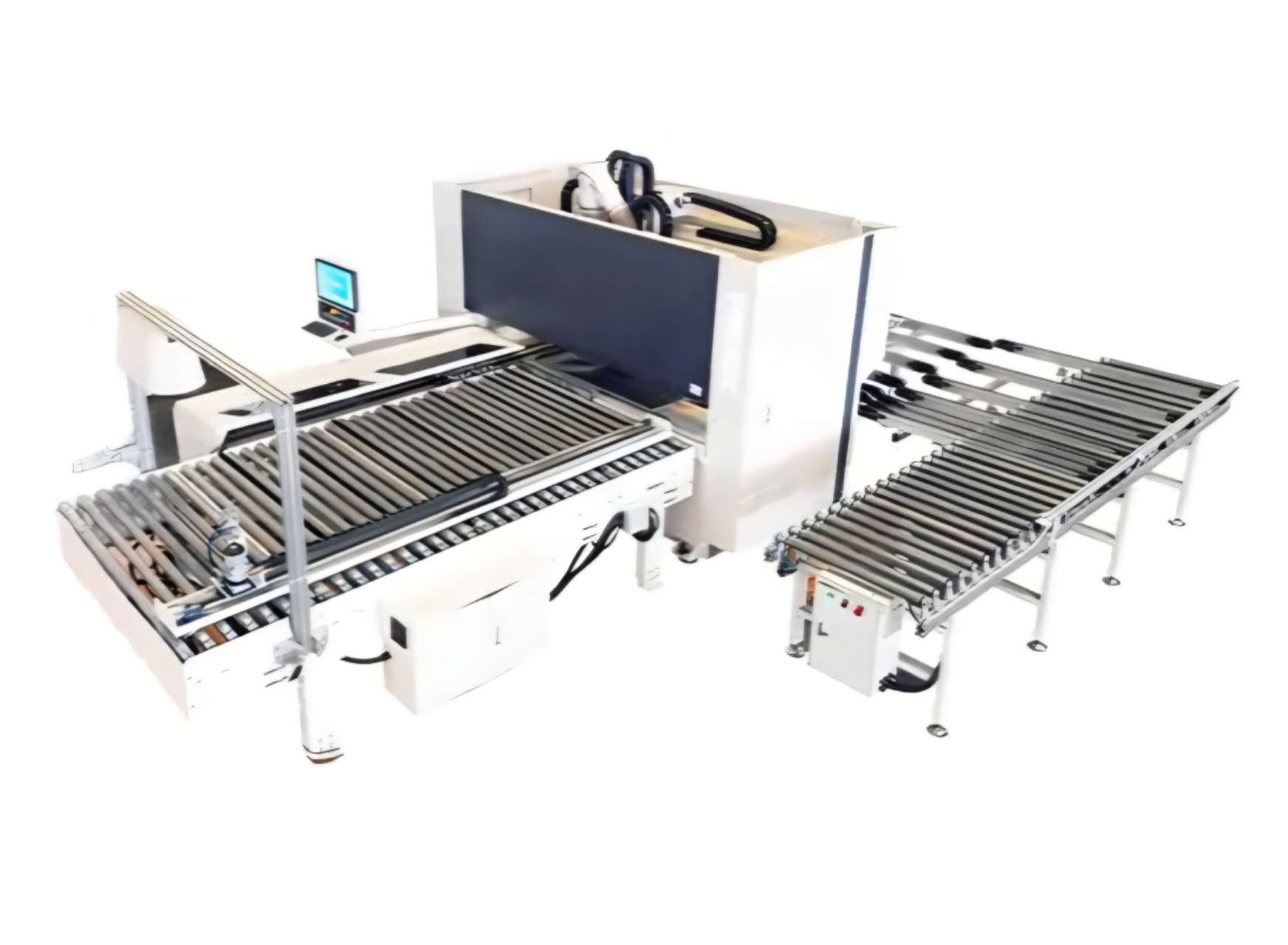

PT6.5-1225-ALAI-AR

• Processing Size:

X axis travel, 3000mm

Y axis travel, 1500mm

Z axis travel, 200mm

- Maximum feed:

X axis speed, 130m/min

Y axis speed, 85m/min

Z axis speed, 25m/min

• 1* upper spindle: 6KW ATC CC (Automatic tool change)
• Magazine: Automatic 6 tool change
• 2* Lower spindle: 2*3,5KW CC

Upper drilling head: 12V+8H CC

• Lower drilling head: 9V CC
• Transmission rack: Shimpo Germany
• Drive screw: Rotalin Taiwan TBI
• Frequency conveyor: Hippo Monte
• Main electrical components: Schneider
• Maximum processing size: 1200mm (board width)
• Minimum processing size: 40*180mm
• Main pneumatic components: SMC & Airtac

• Wireless scanner: American ZEBRA

• Countertop structure: Air floating HPL + chrome plated
• Machine dimension: 3050*5700*2600mm
• Machine Weight: 3900KG

• Working Voltage, air pressure, power: 3PH AC380V/50HZ ≥0.65Mpa, 22KW

• Air Consumption: 800 l/min

• Dust Collector flow rate: 500m³/
