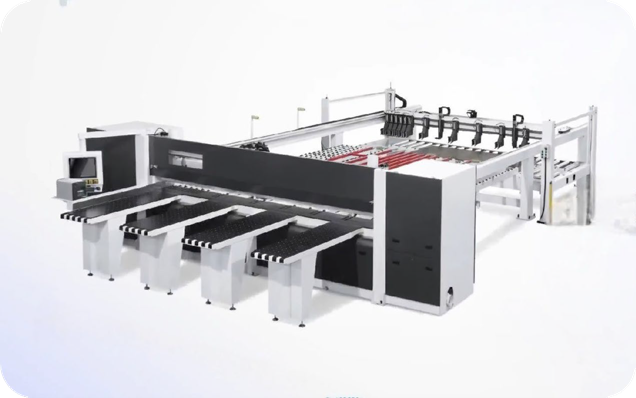

05 PROSAW U4.2-FSFO-A
05 PROSAW U4.2-FSFO-A
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
- Max. cutting length: 4,200
- Max cutting thickness: 90mm (5 panels, 18mm)
- Motor Power: 18kw -22hp
- Rotating speed: 5,800rpm-min
- Saw blade diameter: Φ380mm (maxΦ450)
- Saw blade shaft diameter: Φ75mm
- Rotating speed: 7000 rpm/min
- Saw blade diameter: Φ200mm
- Saw blade shaft diameter: Φ50mm
- Motor power: 1.8kw
- Forward speed: 80m/min
- Backward speed: 120m/min
- Automatic feeding motor: 1.8kw
- Max. feeding speed: 0-80m/min
- Touch Screen 21’’ - Windows 10 - USB port / WIFI connection
- Air Requirement 6 BAR
- Power supply AC3P380V/50Hz
- Total power 29.2KW
- Overall size 10500 x 9000 x1890mm
- Net weight 8400kg
